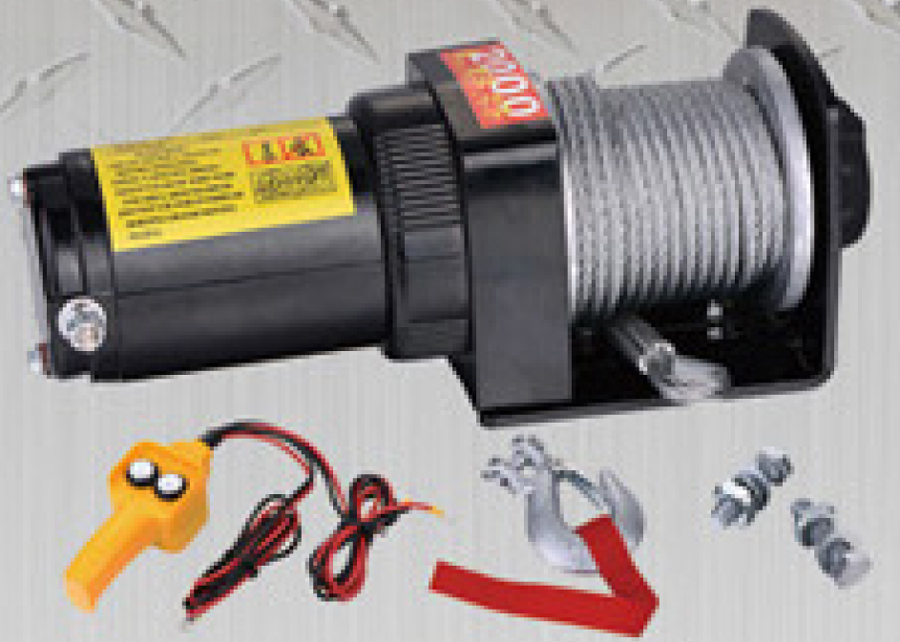

Electric Winch

• Model:87831
• Performance Voltage:DC 12V/24V
• Rated Line Pull(single line):2000 LB(907 kg）
• Motor:1.0 Hp Permanent Magnet
• Gearing:Differential planetary
• Gear Ratio:153:1
• Free Spooling Clutch:Turn
• Wire Rope：4.8mm*12m
• Drum Diameter/Length:31mm*72m
• Braking action:Dynamic
• Fairlead:Optional
• Duty Cycle:Intermittent
• Mounting bolt pattern:80mm
• Dimensions：285*105*105 mm
• G.W./N.W.:26/24kg(4 Pcs/ctn)
• Shipping Carton Size：49*34*37 cm94 pcs/ctn)
