Detailed parameters:

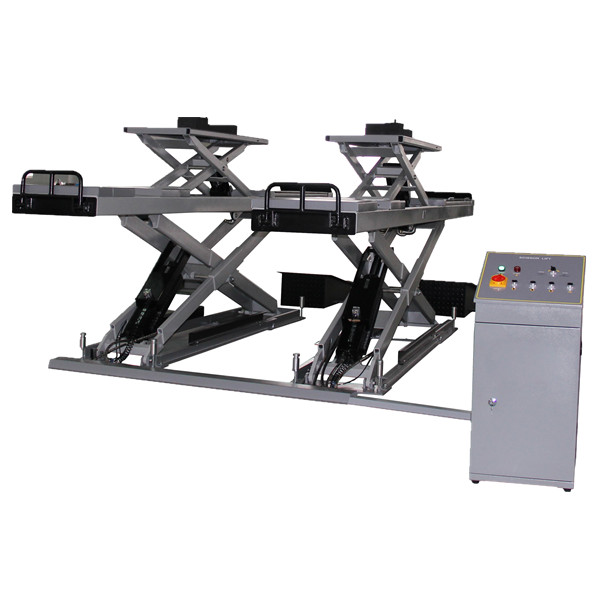

4000 kg Wheel Alignment Small Scissor Lift
-
Model:92861
-
Lift capacity:4000 kg
-
Jack capacity:3000 kg
-
Lift height:1800 mm
-
Jack height:450 mm
-
Min height:330 mm
-
Runway Width:600 mm
-
Runway Length:4000 mm
-
Lift time:60 s
-
Oil Pressure:20 Mpa
-
Air Pressure:0.6-0.8 Mpa
-
Motor power:2.2/3.0 kw
-
Power supply:220-240/380-415V
-
G.Weight:2300 kg
-
Packing size:4050*610*360 mm*2 pcs 480*420*1050 mm
-
Suitable for automobile 4S shop.wheel alignment and detection of repair and mainte-nance
-
In-ground and under -ground installation
-
With jack lifting device,jack height is 450mm
-
The angle plate is adjustable
-
Removable front baffle
-
Aluminum shell motor prevents overheated
-
Operating control sysrem with 24V safety voltage
-
With 24V limit switch
-
Auto insurance during the ascent to ensure the safety of vehicles
-
The rising process track Synchronous device,ensure the vehicle without overturning possiblity
-
Hydraulic system with overload protection device,to prevent the pressure exceeds the maximumm safe limits
-
The vhicles will fall to the ground manually when power off(optional)
-
Pass 115% dynamic and 150% static loading test
