Detailed parameters:

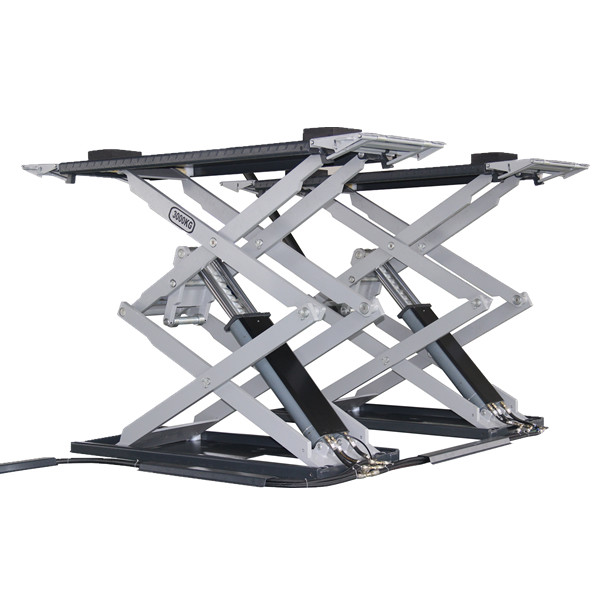

3000 kg Ultrathin Small Scissor Lift
-
Model:92858
-
Lift capacity:3000 kg
-
Lift height:1850 mm
-
Min height:110 mm
-
Lift time:55 s
-
Overall length of platform:1450-1950 mm
-
Overall width of platform:660 mm
-
Motor power:2.2 kw
-
Power supply:220 V/380 V
-
Weight:1000 kg
-
Packing size:1560*710*760 mm*2 pcs 480*420*1050 mm
-
Ultrathin structure design can be installed directly on the ground
-
Four cylinders structure Minimum height is 110 mm
-
Antiskid platform.Aluminum shell motor prevents overheated
-
Operating control system with 24V safety voltage
-
With 24V limit switch
-
Safety signal when lowering to 500mm above ground
-
Pneumatic lock device
-
Platforms can extend for different length of vehicles
-
Pass 115% dynamic and 150% static loading test
-
CE approved
