Detailed parameters:

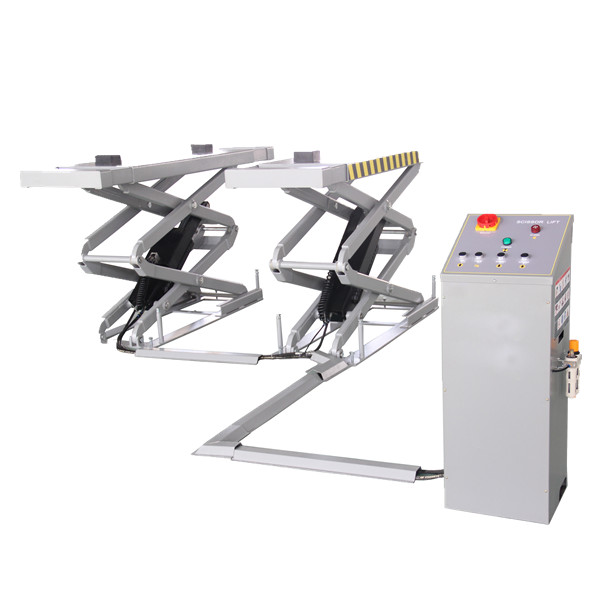

3200 kg Inground Small Scissor Lift
-
Model:92856
-
Lift capacity:3200 kg
-
Lift height:2030 mm
-
Min height:330 mm
-
Lift time:55-60 s
-
Overall length of platform:1440-1640 mm
-
Overall width of platform:550 mm
-
Width between platforms:910 mm
-
Motor power:2.2 kw
-
Power supply:220 V/380 V
-
Weight:850 kg
-
Packing size:1700*570*770 mm*2 pcs 480*420*1050 mm
-
In-ground installation
-
Double cylinder structure,330 mm under trench installation
-
Aluminum shell motor prevents overheated
-
Operating control system with 24 V safety voltage
-
With 24 V limit switch
-
Safety signal when lowering to 500 mm above ground
-
Two platforms can extend for different length of vehicles
-
Pass 115% dynamic and 150% static loading test
-
CE approved
