Detailed parameters:

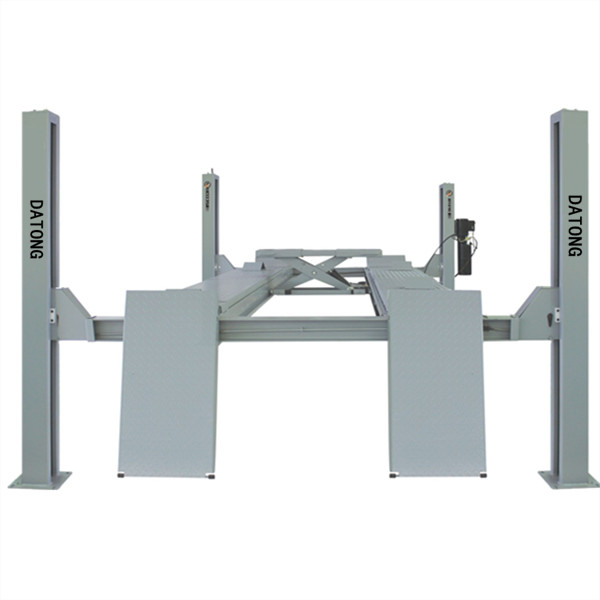

5000 kg/3500 kg Wheel Alignment Four Post Lift
-
Model:92816/92817
-
Lift capacity:5000 kg/3500 kg
-
Lift height:1850 mm
-
Secondary lifting height:450 mm
-
Secondary lifting weight:3.0 T
-
Power of motor:3.0 kw
-
Oil pressure:18 Mpa
-
Power supply:220-240 v/380-415 v 1/3 PH,50 Hz/60 Hz
-
Rise time:50 s
-
Drop time:40 s
-
Single side manual lock release,easy to operate.
-
Cylinder located inside of the runway,perfectly protected.
-
Heavy duty steel ropes to enhance the safety.
-
Adjustable runways make lift more versatile for different wheel base vehicles.
-
Top limitation switch.
-
Electrical protection devices in four columns ensure runways go up synchronized.
-
Hydraulic hose broken and wire roope broken protection system.
-
CE required 24 v simple control box(Optional)
-
Aluminum motor with cooling fan.
-
CE certified.
